一、目的
用PLC構成裝配流水線控制系統

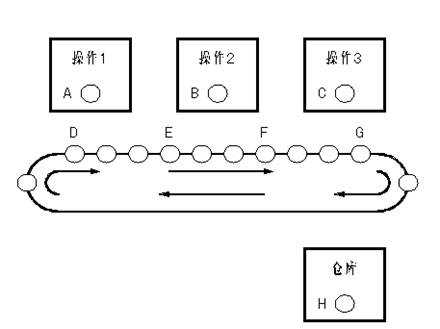

圖1 裝配流水線控制示意圖
二、控制內容
1． 1． 控制要求
起動后，按以下規律顯示：D→E→F→G→A→D→E→F→G→B→D→E→F→G→C→D→E→F→G→H→D→E→F→G→A……循環，D、E、F、G分別是用來傳送的，A是操作1，B是操作2，C是操作3，H是倉庫。
2．I/O分配
輸入 輸出
起動按鈕：I0.0 A：Q0.0 E：Q0.4
復位按鈕：I0.1 B：Q0.1 F：Q0.5
移位按鈕：I0.2 C：Q0.2 G：Q0.6
D：Q0.3 H：Q0.7
2． 按圖所示的梯形圖輸入程序。

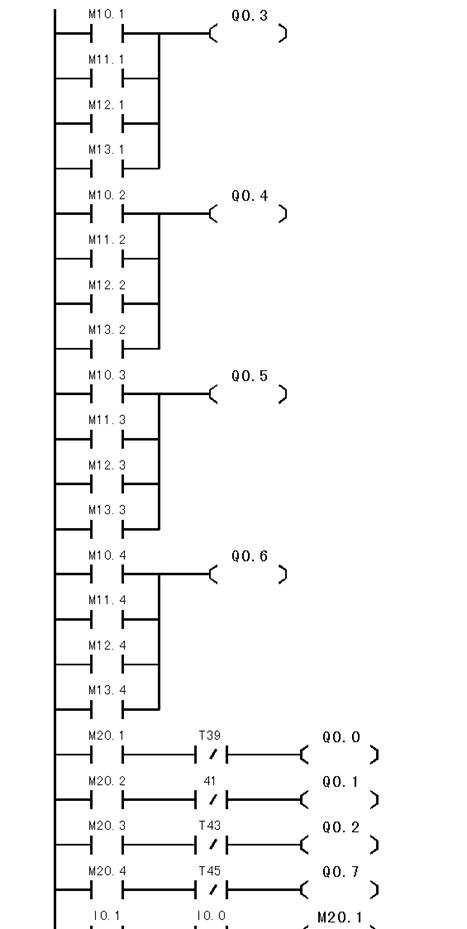

圖2 裝配流水線梯形圖
三、裝配流水線控制語句表
|
0 |
LD |
I0.0 |
37 |
= |
M1.1 |
77 |
= |
Q0.3 |
|
1 |
O |
M0.0 |
38 |
TON |
T47，+50 |
78 |
LD |
M10.2 |
|
2 |
AN |
I0.1 |
39 |
LD |
M1.1 |
79 |
O |
M11.2 |
|
3 |
= |
M0.1 |
40 |
AN |
T47 |
80 |
O |
M12.2 |
|
4 |
LD |
M0.1 |
41 |
O |
M1.2 |
81 |
O |
M13.2 |
|
5 |
AN |
M0.0 |
42 |
= |
M20.0 |
82 |
= |
Q0.4 |
|
6 |
TON |
T37，+10 |
43 |
LD |
M20.4 |
83 |
LD |
M10.3 |
|
7 |
LD |
T37 |
44 |
TON |
T48，+80 |
84 |
O |
M11.3 |
|
8 |
= |
M0.0 |
45 |
AN |
T48 |
85 |
O |
M12.3 |
|
9 |
LD |
I0.2 |
46 |
= |
M1.2 |
86 |
O |
M13.3 |
|
10 |
O |
M2.0 |
47 |
LD |
M1.0 |
87 |
= |
Q0.5 |
|
11 |
AN |
T57 |
48 |
SHRB |
M20.0，M20.1，+4 |
88 |
LD |
M10.4 |
|
12 |
AN |
I0.1 |
89 |
O |
M11.4 |
|||
|
13 |
= |
M2.0 |
49 |
LD |
M20.1 |
90 |
O |
M12.4 |
|
14 |
TON |
T57，+10 |
50 |
TON |
T39，+30 |
91 |
O |
M13.4 |
|
15 |
LD |
M2.0 |
51 |
LD |
T39 |
92 |
= |
Q0.6 |
|
16 |
O |
M0.5 |
52 |
TON |
T40，+15 |
93 |
LD |
M20.1 |
|
17 |
= |
M10.0 |
53 |
AN |
T40 |
94 |
AN |
T39 |
|
18 |
LD |
M0.2 |
54 |
= |
M0.2 |
95 |
= |
Q0.0 |
|
19 |
= |
M11.0 |
55 |
LD |
M20.2 |
96 |
LD |
M20.2 |
|
20 |
LD |
M0.3 |
56 |
TON |
T41，+30 |
97 |
AN |
T41 |
|
21 |
= |
M12.0 |
57 |
LD |
T41 |
98 |
= |
Q0.1 |
|
22 |
LD |
M0.4 |
58 |
TON |
T42，+15 |
99 |
LD |
M20.3 |
|
23 |
= |
M13.0 |
59 |
AN |
T42 |
100 |
AN |
T43 |
|
24 |
LD |
M0.0 |
60 |
= |
M0.3 |
101 |
= |
Q0.2 |
|
25 |
SHRB |
M10.0，M10.1，+5 |
61 |
LD |
M20.3 |
102 |
LD |
M20.4 |
|
62 |
TON |
T43，+30 |
103 |
AN |
T45 |
|||
|
26 |
SHRB |
M11.0，M11.1，+5 |
63 |
LD |
T43 |
104 |
= |
Q0.7 |
|
64 |
TON |
T44，+15 |
105 |
LD |
I0.1 |
|||
|
27 |
SHRB |
M12.0，M12.1，+5 |
65 |
AN |
T44 |
106 |
AN |
I0.0 |
|
66 |
= |
M0.4 |
107 |
R |
M20.1，4 |
|||
|
28 |
SHRB |
M13.0，M13.1，+5 |
67 |
LD |
M20.4 |
108 |
R |
M10.1，28 |
|
68 |
TON |
T45，+30 |
109 |
R |
M1.1，1 |
|||
|
29 |
LD |
M10.5 |
69 |
LD |
T45 |
|
|
|
|
30 |
O |
M11.5 |
70 |
TON |
T46，+15 |
|
|
|
|
31 |
O |
M12.5 |
71 |
AN |
T46 |
|
|
|
|
32 |
O |
M13.5 |
72 |
= |
M0.5 |
|
|
|
|
33 |
EU |
|
73 |
LD |
M10.1 |
|
|
|
|
34 |
= |
M1.0 |
74 |
O |
M11.1 |
|
|
|
|
35 |
LD |
M10.0 |
75 |
O |
M12.1 |
|
|
|
|
36 |
O |
M1.1 |
76 |
O |
M13.1 |
|
|
|
